Specifications:

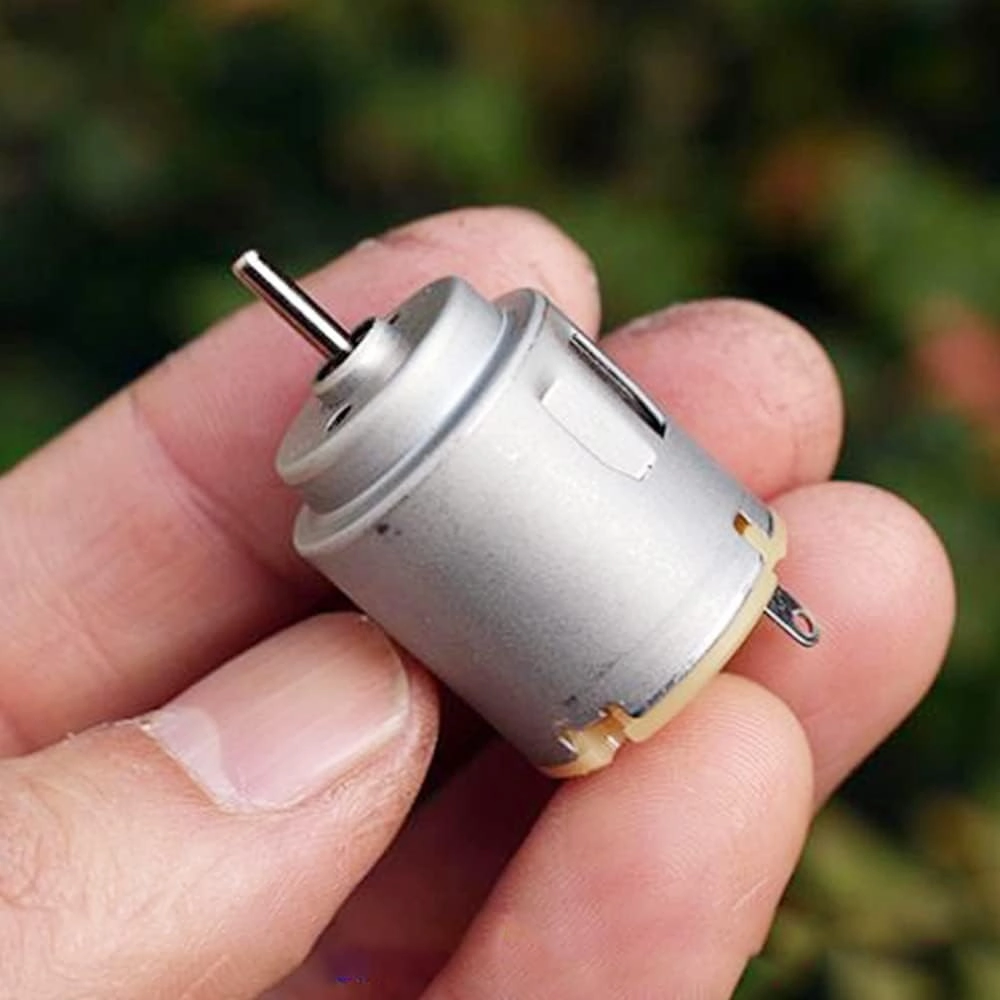

1.Brand: Mabuchi MOTOR
2.Model: 140RA-12240 Motor
3.Motor size: 25*21mm
4.Output shaft diameter: 2mm
5.Output shaft length: 9.8mm
6.Voltage range: DC 6V-12V
7.Weight:20g
Test data:
Voltage:6.0V No-load speed:9300RPM No-load Current:60m (Aolcked rotor current:720MA)
Voltage:9.0V No-load speed:13100RPM No-load Current:70mA (Aolcked rotor current:1A)
Voltage:12.0V No-load speed:16500RPM No-load Current:78mA (Aolcked rotor current:1.4A)
Package includes:
10PCS* R140 Motor
Item specifics:
Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance
Model number: RE-140 Motor
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: ROHS
Origin: Mainland China
Motor size: 25*21mm
Shaft diameter: 2mm
Current range: 78mA
Speed: 12V@16500RPM
Shaft length: 9.8mm
Voltage range: 6V-12V
Model: 140RA-12240
