Motors
Specification:

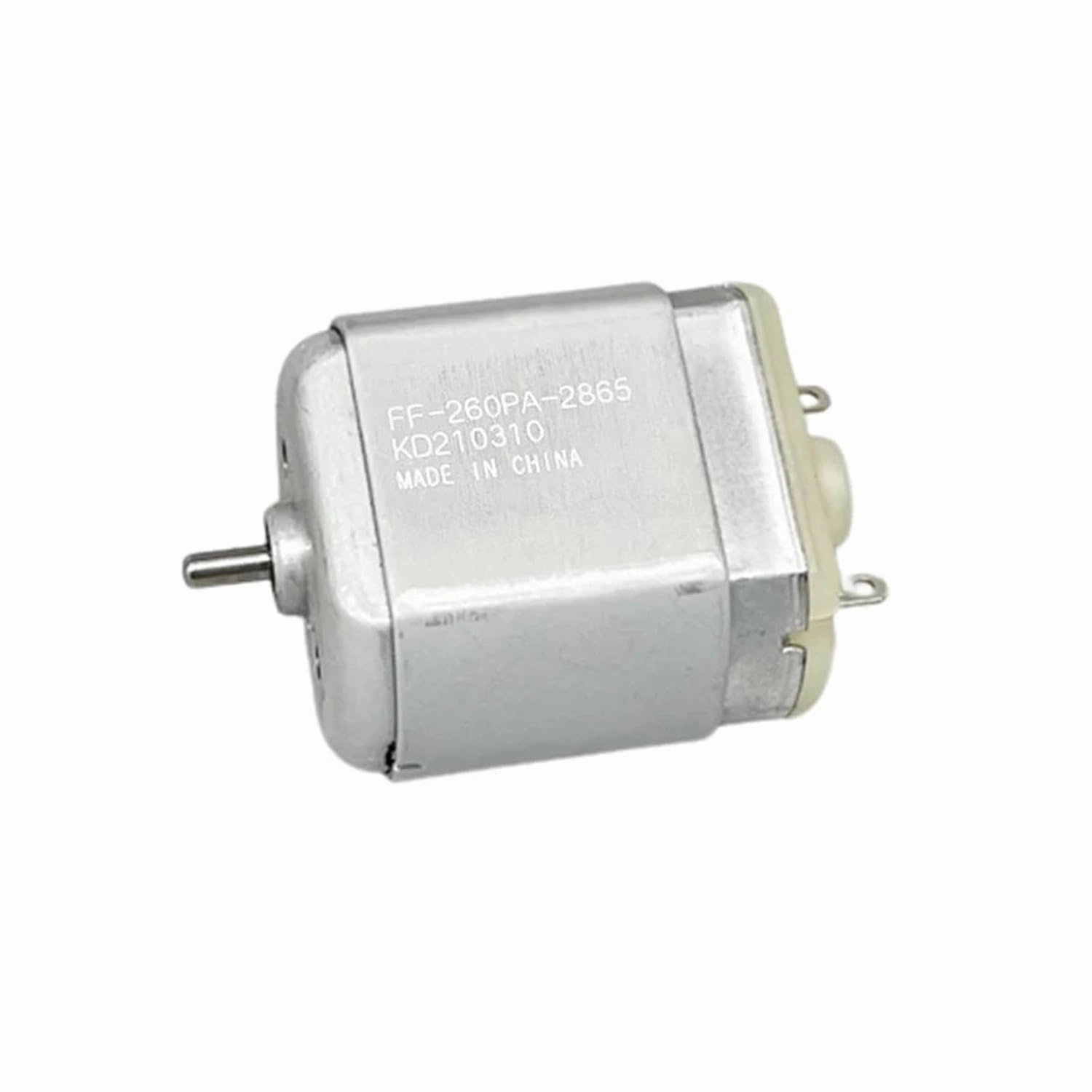

Model: FF-260PA-2865
Motor size: 24mm (with cover 25.5mm)
Motor thickness: 18.2mm
Motor length: 27mm
Output shaft diameter: 2.0mm
Output shaft length:6.2mm (include step height)
Weight: 37g
Suitable voltage: DC 2.4V-3.7V
Test data:
Voltage:2.4V No-load current:118mA No-load speed:6600RPM
Voltage:3.0V No-load current:140mA No-load speed:8200RPM
Voltage:3.7V No-load current:145mA No-load speed:10300RPM
Package List:
Motor x 1PCS
Usage : Home Appliance
Model Number : Mini 260 Motor
Construction : Permanent Magnet
Type : Motor
Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model : FF-260PA-2865
Motor size : 24mm (with cover 25.5mm)
Motor height : 27mm
Output shaft diameter : 2.0mm
Weight : 37g
Suitable voltage : DC 2.4V-3.7V
No-load speed : 6600RPM-10300RPM

• Package Dimensions ‏ : ‎ 1.18 x 0.79 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ December 7, 2024
• Manufacturer ‏ : ‎ SOSODBBM
• Country of Origin ‏ : ‎ China
