Specifications:

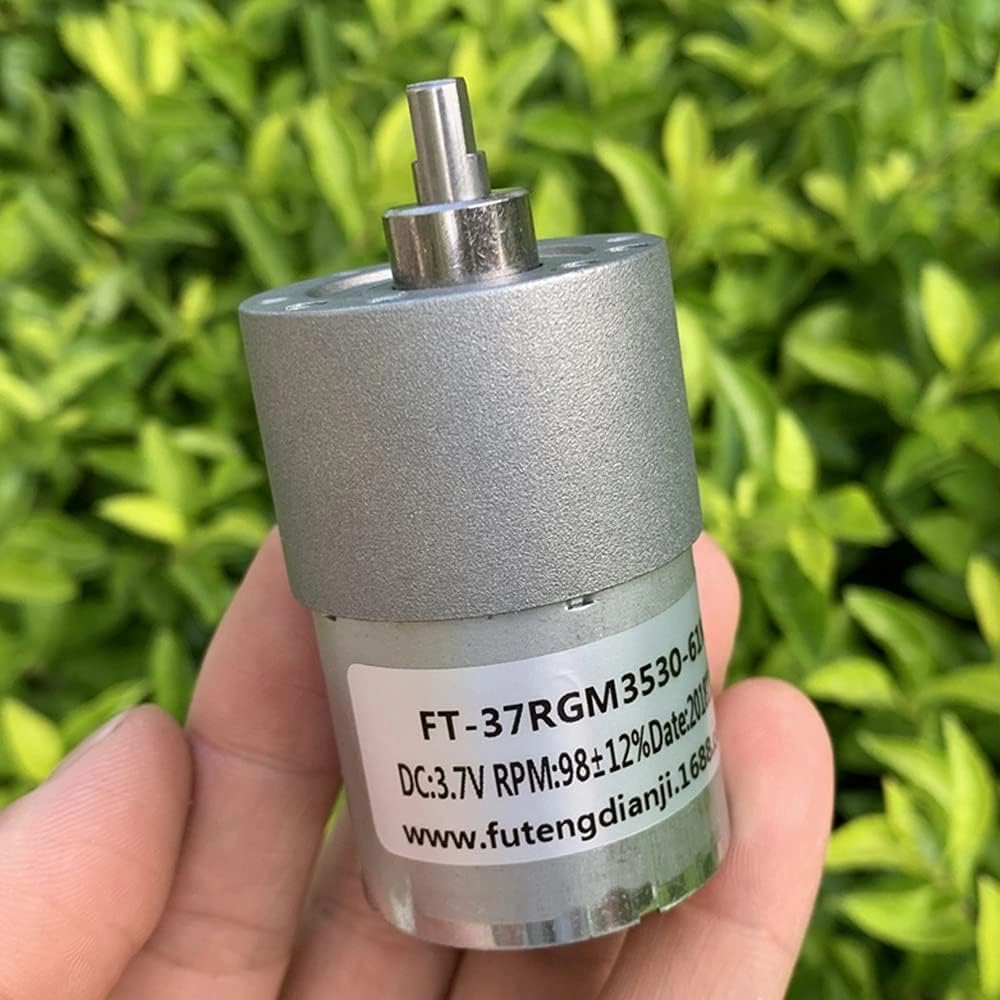

Motor model: FT-37RGM3 530-61K
Motor Specifications: 29.5*34.5 mm (N20 motor)
Gearbox size: 25*37 mm
Output shaft diameter: 6 mm (with flat shaft diameter 4mm)
Output shaft length: 9.2 mm
Weight: 177g
Voltage range: 3.0V-7.4V
Test data:
Voltage: 3.0V No-load Current: 178 mA No-load speed: 88RPM
Voltage: 3.7V No-load Current: 190 mA No-load speed: 98RPM
Voltage: 5.0V No-load Current: 215 mA No-load speed: 135RPM
Voltage: 6.0V No-load Current: 235 mA No-load speed: 165RPM
Voltage: 7.4V No-load Current: 275 mA No-load speed: 196RPM
Package includes:
1PCS * DC Motor
Item specifics:
Usage: BoAt,car,Electric Bicycle,Home Appliance,Intelligent Machine
Model number: 37RGM530
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Gear Motor
Certification: ce,ROHS
Origin: Mainland China
Shaft diameter: 6 mm (with flat shaft diameter 4mm)
Shaft length: 15.2mm
Voltage range: DC 3.0V-7.4V
