Motors
Specification:

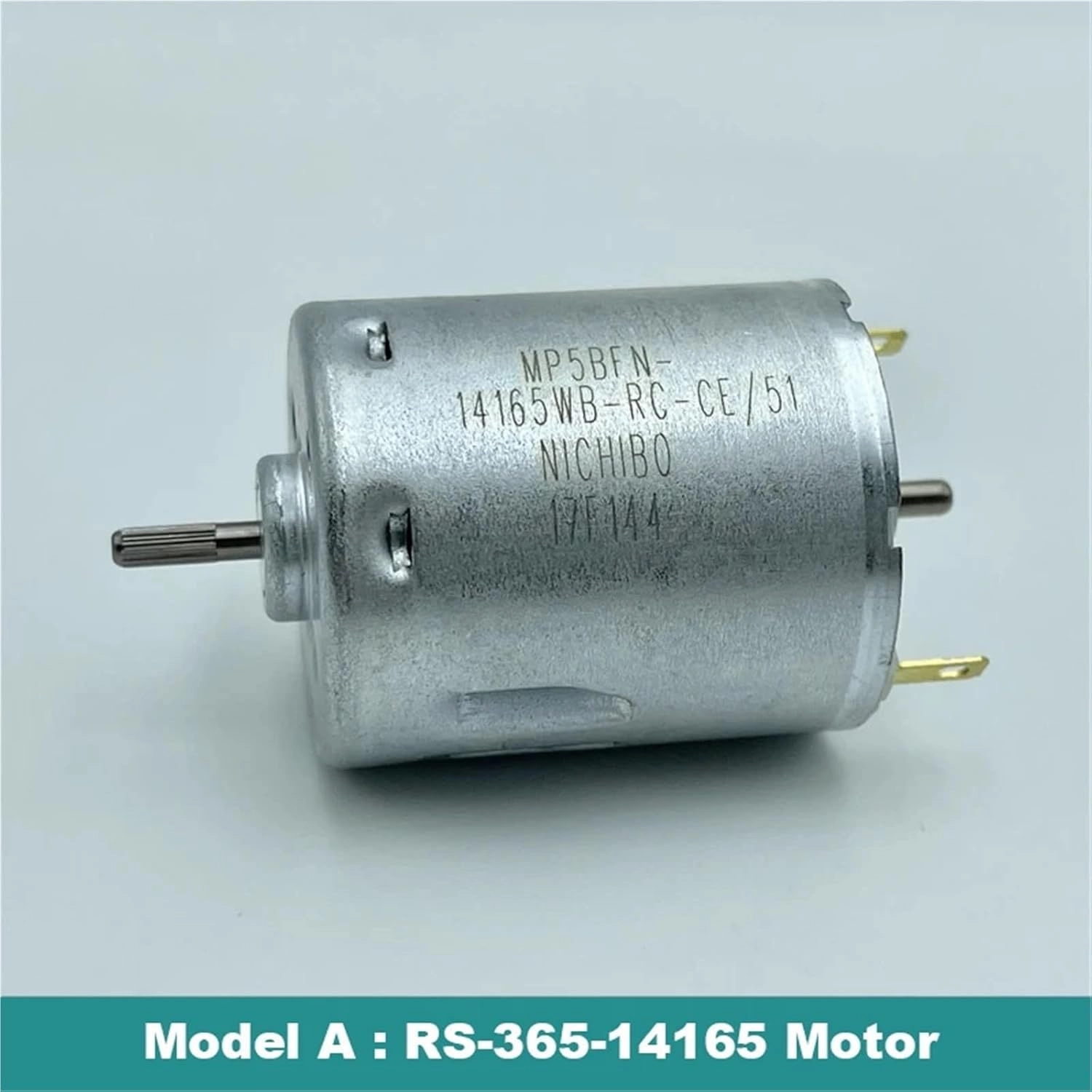

I. Model A Motor
2.Model: RS-365-14165
3.Motor size: 32.2mm*27.7mm
4.Output shaft diameter: 2.3mm(Knurled shaft)
5.Output shaft length: front shaft 11mm(include step height); rear shaft 4.3mm
6.Weight: 57g
7.Voltage range: DC 6V-24V
8.Test data:
Voltage:6.0VCurrent:50mANo-load speed:2500RPM
Voltage:12.0V Current:80mANo-load speed:5200RPM
Voltage:14.4V Current:58mANo-load speed:6250RPM
Voltage:18.0V Current:100mA No-load speed:7890RPM
Voltage:24.0V Current:180mA No-load speed:10600RPM
Package List:
Motor x 1pcs
==========
Color : Silver
Usage : Home Appliance
Model Number : RS-365 Motor
Construction : Permanent Magnet
Type : Micro Motor
Protect Feature : Explosion-proof
Commutation : Brush
