- Medium-duty foot switch with highly durable die-cast housing and powder-painted finish.
- User connects their own cable inside the foot switch. Cable strain relief included.
- 15 A, ½ HP, 125/250 VAC, SPDT; has tabs for quick-connect terminals (.187 x .020) or for soldering.
- Momentary action - Press and hold foot pedal to turn on, release to turn off.
- Made in USA. Certified to UL and CSA standards.

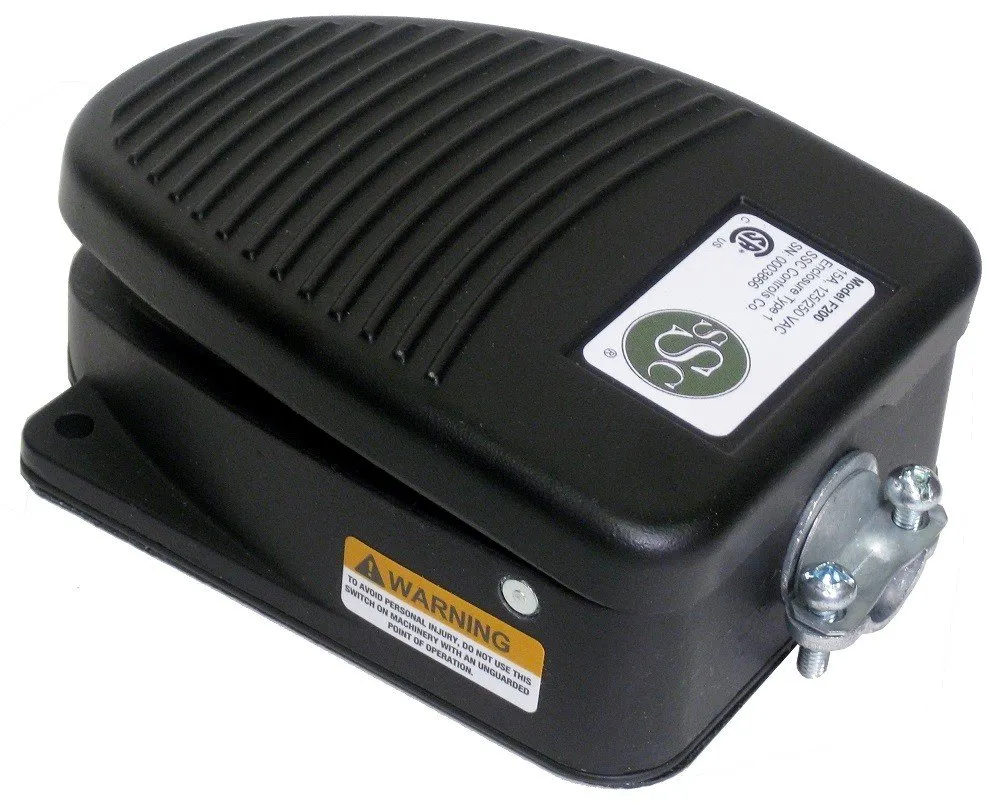

The F200 is a medium-duty foot switch featuring a highly durable die-cast zinc alloy housing, powder-painted finish, and do-it-yourself wiring connection. Ideal for home and shop tools, office and communication equipment, boom lifts, scissor lifts, man lifts, emergency vehicles (fire truck siren or air horn), musical operation, lighting, and more. Features a 15-amp, 125/250 VAC-rated switch with one common, one normally open, and one normally closed contact (SPDT, Form C). The switch has .187 x .020 tabs on it for quick-disconnect terminals (or you can solder directly to the terminals). This is a momentary foot switch, which means that it actuates when your foot is on the foot pedal, and de-actuates when you release your foot from the pedal. Includes adjustable strain relief connector, traction pad, and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments. CSA Certified to US and Canadian standards. Cross reference: 632-S Clipper (note: check electrical rating requirements for your application; this model has 15-amp capacity). See our model F500 if you need a 20-amp rating on the switch with greater electrical capacity and screw terminals. Size: 4.8" L x 3.5" W x 1.7" H; 2.1 pounds. One year warranty on parts and labor. Made in the USA by SSC Controls Company.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 4.8 x 3.5 x 1.7 inches; 2.2 Pounds
- Date First Available : November 10, 2015
- Manufacturer : SSC Controls
- Country of Origin : USA
